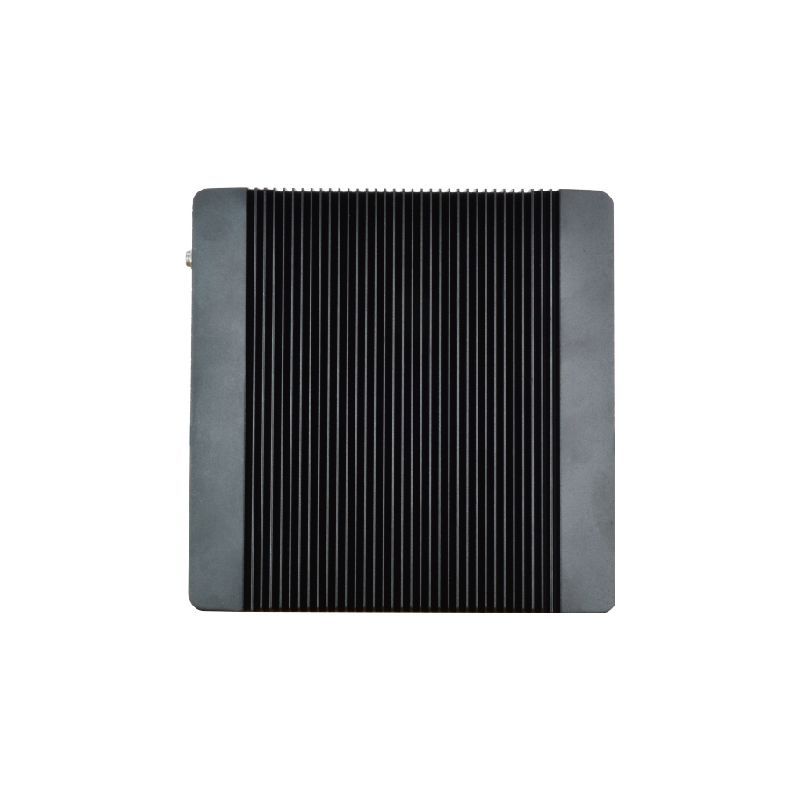

BPC-IN100/IN200-2N6B
Embedded Box PC Based on Intel Alder Lake-N Series CPU
Key Features
- Support Intel Alder Lake N100 and N200 processors
- 32GB single channel SO-DIMM DDR4
- 1 x SATA and 1 x M.2 for SATA SSD/4G
- 1 x HDMI2.0, 1 x DP, 1 x LVDS/eDP
- 2 x RJ45 network port (Intel i226 controller, 2.5GbE per port)
- Support Win10/11 64 bit, Linux 64 bit
BPC-IN100/IN200-2N6B is based on the 12th Gen. Intel Alder Lake-N series processor, ideal for various industrial applications. It supports 1 x SO-DIMM DDR4 up to 32GB, and features HDMI2.0, DP, LVDS/eDP for multitasking. It has rich I/O interfaces including 2 x USB3.0, 2 x USB2.0, 1 x USB Dongle, 2 x LAN, 1 x SATA, 2 x M.2 connector and 1 x PCIe4X(PCIe 2X Signal)
| Processor | Alder Lake N Series | N200 | N100 |
| Total Cores/Threads | 4C/4T | 4C/4T | |
| Max Turbo Frequency | 3.70GHz | 3.40GHz | |
| Cache | 6MB | 6MB | |
| Memory | Type | Single Channel SO-DIMM DDR4 | |
| Max. Capacity | 32GB | ||
| Display | GPU | Integrated Intel UHD Graphics | |
| Interface | 1 x HDMI2.0, 1 x DP, 1 x LVDS/eDP | ||
| Ethernet | Controller | 2 x Intel i226 Data Rate Per Port: 2.5GbE | |
| Interface | 2 x RJ45 | ||
| Wake on LAN | Yes | ||
| Audio | Audio Codec | Realtek HD | |
| Interface | 1 x Line-out, 1 x Mic-in, supports audio header and amplifier header | ||
| Hardware | CPU system temperature, onboard voltage, watchdog and auto power on | ||
| Storage | M.2 | 1 x M.2 for SATA SSD/4G | |
| SATA | 1 | ||
| Expansion | M.2 | 1 x M.2 for WiFi | |
| PCIe4X | 1(PCIe 2X Signal) | ||
| SIM | Optional | ||
| I/O Interfaces | LAN | 2 | |
| Display | 1 x HDMI2.0, 1 x DP | ||
| USB3.2 | 2 x USB3.0 | ||
| USB2.0 | 2 x USB2.0 | ||
| USB Dongle | 1(USB2.0) | ||
| Audio | 1 x Line-out, 1 x Mic-in | ||
| Dimension | Size | 190 mm(D)× 190 mm(W)× 65 mm(H) | |
| Power | Standard Port | 12V/19V DC-IN | |
| Operating Temp. | -20°C~60°C | ||
| Storage Temp. | -40°C~80°C | ||
| Operating System | Win 10/11 64 bit, Linux 64 bit | ||
