BPC-I1240P-2N6B
Embedded Box PC Based on Intel Core i5-1240P Processor
Key Features
- Support Intel Core i5-1240P processor
- 64GB single channel SO-DIMM DDR4
- 1 x SATA and 1 x M.2 for SATA SSD/4G
- Intel UHD graphics, 4 x HDMI, 1 x DP and 1 x LVDs/eDP
- 2 x RJ45 network port (Intel i226 controller, 2.5GbE per port)
- Support Win10/11 64 bit, Linux 64 bit

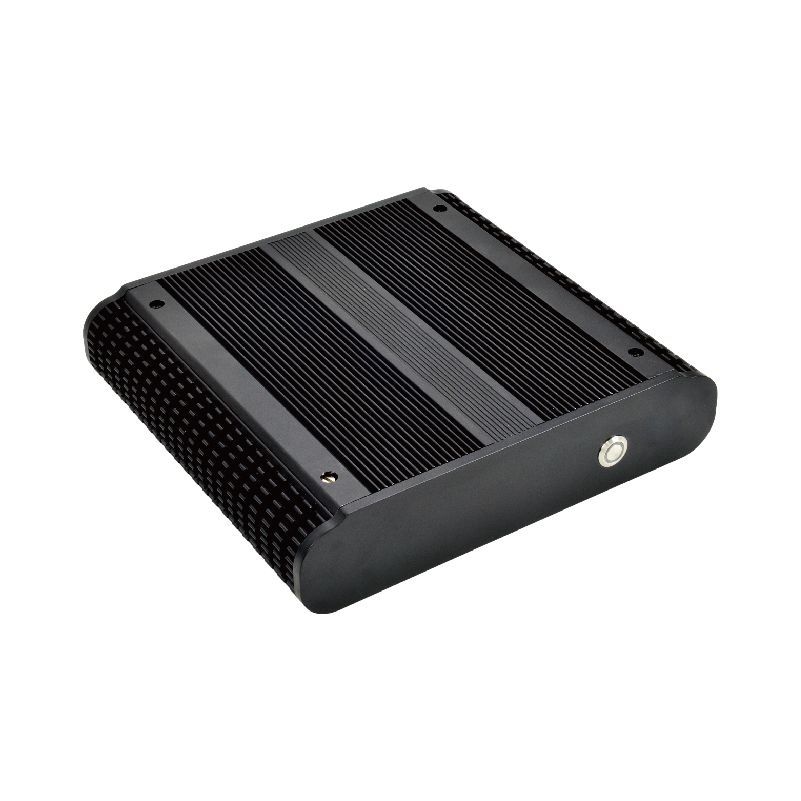

BPC-I1240P-2N6B is designed with the Intel Core i5-1240P Processor up to 4.40GHz. Based on a small form factor design great for IoT deployments that require high-performance, enhanced graphics density. It supports SO-DIMM DDR4 up to 64GB, features 4 x HDMI2.0, 2 x USB3.2, 2 x USB2.0, 2 x LAN, 1 x SATA, 2 x M.2 connector and 1 x PCIe4X.
BPC-I1240P-2N6B drives more values for IoT use cases with differentiated capabilities, offers an immersive experience by Intel UHD graphics, and supports 4K independent displays through 4 x HDMI, 1 x DP and 1 x LVDs/eDP, suitable for video, security, healthcare, and industrial manufacturing.
BPC-I1240P-2N6B drives more values for IoT use cases with differentiated capabilities, offers an immersive experience by Intel UHD graphics, and supports 4K independent displays through 4 x HDMI, 1 x DP and 1 x LVDs/eDP, suitable for video, security, healthcare, and industrial manufacturing.
| Processor | Intel® Core™ i5-1240P Processor (12M Cache, up to 4.40 GHz) | |
| Memory | Type | Single Channel SO-DIMM DDR4 |
| Max. Capacity | 64GB | |
| Display | GPU | Integrated Intel UHD Graphics |
| Interface | 4 x HDMI2.0, 1 x DP, 1 x LVDS/eDP | |
| Ethernet | Controller | 2 x Intel i226 Data Rate Per Port: 2.5GbE |
| Interface | 2 x RJ45 | |
| Wake on LAN | Yes | |
| Audio | Audio Codec | Realtek HD |
| Interface | 1 x Line-out, 1 x Mic-in, supports audio header and amplifier header | |
| Hardware | CPU system temperature, onboard voltage, watchdog and auto power on | |
| Storage | M.2 | 1 x M.2 for SATA SSD/4G |
| SATA | 1 | |
| Expansion | M.2 | 1 x M.2 for WiFi |
| PCIe4X | 1(PCIe 2X Signal) | |
| SIM | Optional | |
| Intel AMT | support | |
| I/O Interfaces | LAN | 2 |
| Display | 4 x HDMI2.0 | |
| USB3.2 | 2 x USB3.2 | |
| USB2.0 | 2 x USB2.0 | |
| Audio | 1 x Line-out, 1 x Mic-in | |
| Dimension | Size | 245mm x 194mm x 54.5mm (W x D x H) |
| Power | Standard Port | 19V DC-IN |
| Operating Temp. | -20°C~60°C | |
| Storage Temp. | -40°C~80°C | |
| Operating System | Win 10/11 64 bit, Linux 64 bit | |
