BP-MH81-Black
H81 Based Mini Box PC, Onboards i5 4460 Processor
Key Features
- Onboard Core i5-4460 processor
- H81 chipset
- Crucial So-Dimm DDR3L 4GB RAM
- Kingston mSATA 128GB
- Support dual independent display via VGA and HDMI 1.4
- Rich I/O ports: 2*USB3.0, 4*USB2.0, 1*LAN, 2*Audio, 1*DC jack 190 x 190 x 55mm

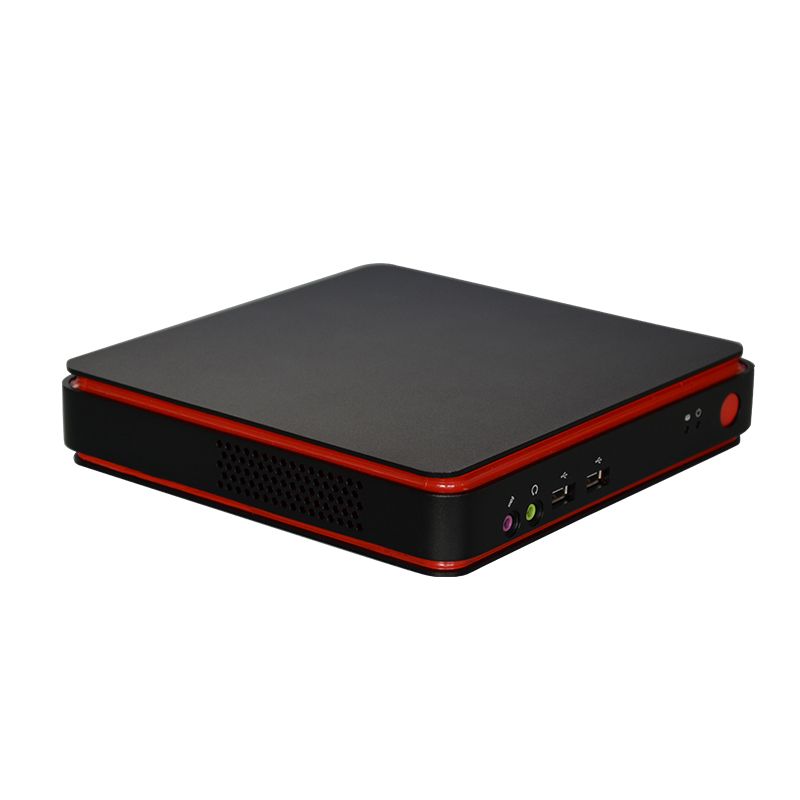

Based on H81 chipset, the BL-MH81-Black is a small form factor box PC. Onboard with LGA1150 socket and Core i5 4460 processor, this mini pc is of high performance. It carries one Crucial So-Dimm DDR3L 4GB and one Kingston mSATA 128GB, which makes this computer be capable of complex task.
This box PC has 1 x HDMI 1.4 and 1 x VGA ports for dual independent display. It also has rich I/O interfaces as 2 x USB3.0, 4 x USB2.0, 1 x LAN, 2 x Mic in and 2 x Line out. With aluminum enclosure, this computer has better cooling system.
These combined features make this system be capable of complicate computing or daily application, bringing more possibilities for digital signage, IOT, security, industrial automation, education, office and so on.
| CPU | Core i5-4460 (3.20 Ghz, max turbo frequency 3.40 Ghz, quad core, TDP 84W) |
| Chipset | H81 |
| System Memory | Crucial So-Dimm DDR3L 4GB |
| Ethernet | 1 x GbE LAN |
| Storage | Kingston mSATA 128GB |
| Expansion | 1 x Half-size Mini PCIe( for WIFI or 3G network) |
| Power Supply | DC 12V 5.5A adapter |
| Display Interface | 1 x VGA, 1 x HDMI 1.4 |
| USB | 2 x USB3.0, 4 x USB2.0 |
| Audio | Mic in, Line out |
| Wake on LAN | Yes |
| Enclosure Material | 100% Aluminum |
| Cooling System | Fan |
| Mounting Option | VESA mounting bracket |
| Color | Black |
| Operating Temperature | -20℃~65℃ |
| Dimension | 190mm x 190mm x 55mm |
| Weight | 0.96kg |
| Package Weight | 2.16kg |
