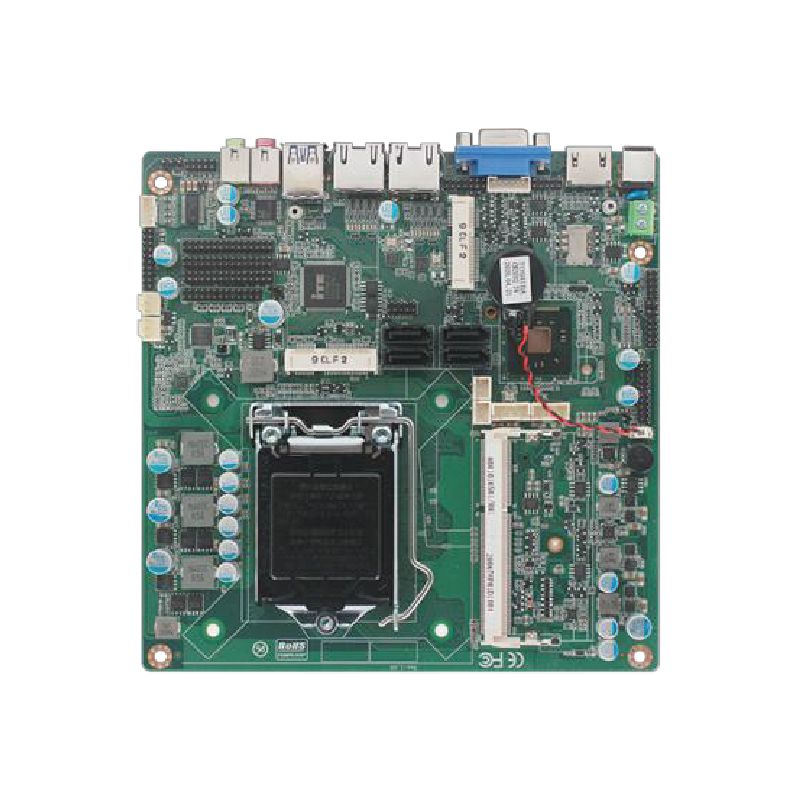

EMB-IH81P-MI2
Mini-ITX Motherboard based on Intel 4th Gen. i3/i5/i7 Celeron/Pentium Series CPU
Key Features
- Supports LGA1150 Intel 4th Gen. i3/i5/i7 Celeron/Pentium series CPU
- 1 x DDR3 SODIMM 204 Socket RAM, up to 16GB
- Onboard 2 x Gigabit Ethernet
- 1 x HDMI, 1 x VGA, 1 x LVDS/EDP (EDP or LVDS optional)
- 4 x RS-232, 2 x RS422/485 (6 x RS232 or 5 x RS232 and 1 x RS422/RS485 optional)
- 1 x PCIE 16X interface
| Processor System | CPU | Supports LGA1150 Intel 4th Gen. i3/i5/i7/Celeron/Pentium Series CPU |
| CPU Package | LGA1150 | |
| Chipset | H81/B85high speed chipset | |
| BIOS | EFI BIOS | |
| RAM | Technology Architecture | Single channel DDR3 1066/1333/1600MHz |
| Capacity | 1 x DDR3 SODIMM 204 Socket, up to 16GB DDR3 RAM, 1066/1333/1600MHz | |
| Video | Graphic Controller | Intel HD Graphics 4400 (I3-4160 graphics card); graphics models related to CPU |
| Dual LVDS and EDP | Supports dual-channel 24bits output, Max. resolution 1920 x 1200, EDP Max. resolution 3840 x 2160（LVDS or EDP for options） | |
| HDMI | HDMI Max. resolution 4096 x 2304 @30Hz | |
| VGA | VGA Max. resolution 2048 x 1536 | |
| Dual Display | LVDS/EDP + VGA, LVDS/EDP + HDMI, HDMI + VGA synchronous or asynchronous display | |
| Triple Display | LVDS/EDP + VGA + HDMI synchronous or asynchronous display (H81 chip don't support triple display) | |

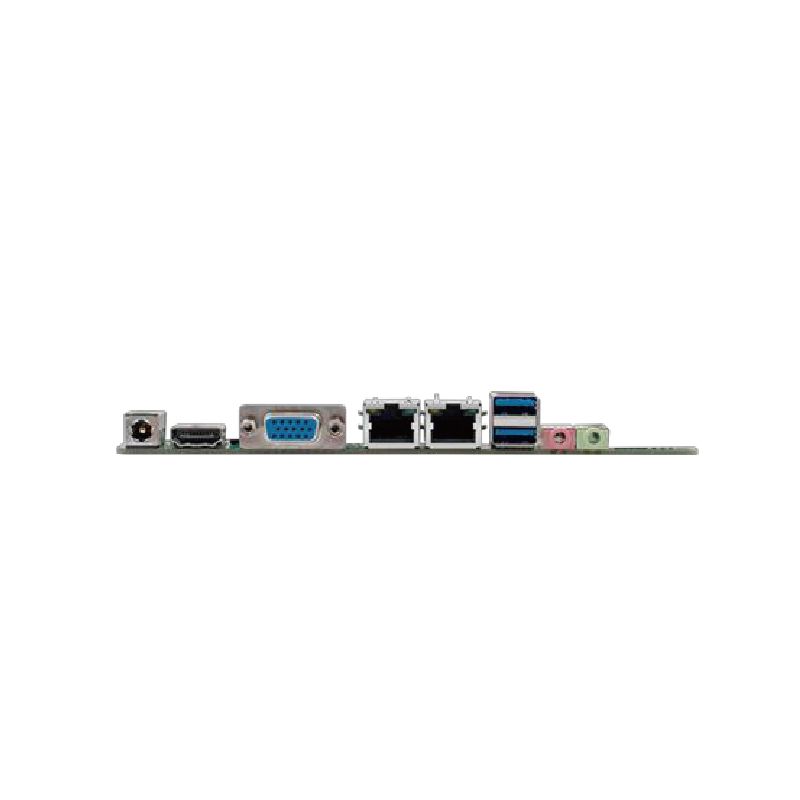

| I/O Back Panel | Ports | 1 x DC, 1 x VGA, 1 x HDMI, 2 x LAN, 2 x USB3.1, 1 x LINE OUT, 1 x MIC |
| Network | Controller | 2 x RTL8111H Gigabit Ethernet, RJ45 Interface (When the I/O interfaces have 4 x USB, there's only 1 x network card） |
| Audio | Controller | Realtek HD ALC662 Audio decoding (left and right channels + microphone) |
| Super I/O | Controller | ITE8786E |
| Hardware Monitoring | Watchdog Timer | 0-255 seconds, provides watchdog routine |
| Cooler | Aluminum radiator with fan | |
| Input/Output Interface | USB | 8 x USB2.0, 2 x USB3.0 (8 x USB2.0 pin headers for dual network cards) 6 x USB2.0 for H81 screen and chipset, 2 x USB3.0 |
| COM | 6 x serial ports (options: 5 x RS232 and 1 x RS485/RS422; 4 x RS-232 and 2 x RS422/485; 6 x RS232/RS485; supports automatic flow control) | |
| GPIO | 8bit, sample code, free definition input or output, 3.3V@24mA | |
| Expansion Bus | Mini-PCle | 1 x Mini-PCIe socket, support PCIe and USB device |
| NGFF | 1 x NGFF interface (KEY E) | |
| Storage | SATA | Two standard SATAII interfaces on the H81 chipset, the maximum transfer rate is 3Gb/s, one SATAIII interface is SATA1, the maximum transfer rate is 6Gb/s, and the B85 chipset comes with four SATAIII interfaces, the maximum transfer rate is 6Gb/s |
| M-SATA | 1 x Mini-PCIe M-SATA Socket, supports SANDISK protocol, maximum transfer rate 6gb/s | |
| Power Supply | Power Type | Single input DC power supply, DC12V, +/-5% |
| Working Environment | Operating Temperature | -20℃ ~ +60℃ |
| Storage Temperature | -40℃ ~ +85℃ | |
| Working Humidity/Storage Humidity | 0% ~ 90% relative humidity, no condensation | |
| System Support | Windows 7, Windows 8.1, Windows 10, Linux | |
| Physical Dimension | Size | 170 x 170 mm |
| N.W | 0.6kg | |
| Certification | CE, RoHS, FCC |
Order Information:
| Item NO | Description | CPU Options |
| EMB-IH81P-MI2 | Support LGA1150 Intel 4th Gen. i3/i5/i7/Celeron/Pentium CPU | Intel 4th Gen. i3/i5/i7/Celeron/Pentium CPU |
