EMB-IN4100D-NI1
Nano-ITX Motherboard Based on Intel Gemini Lake
Key Features
- Supports Intel Gemini Lake CPU
- HDMI and DP dual display
- Onboard 4G DDR4 RAM, 64G eMMC storage
- 2 x USB3.0 + 4 x USB2.0

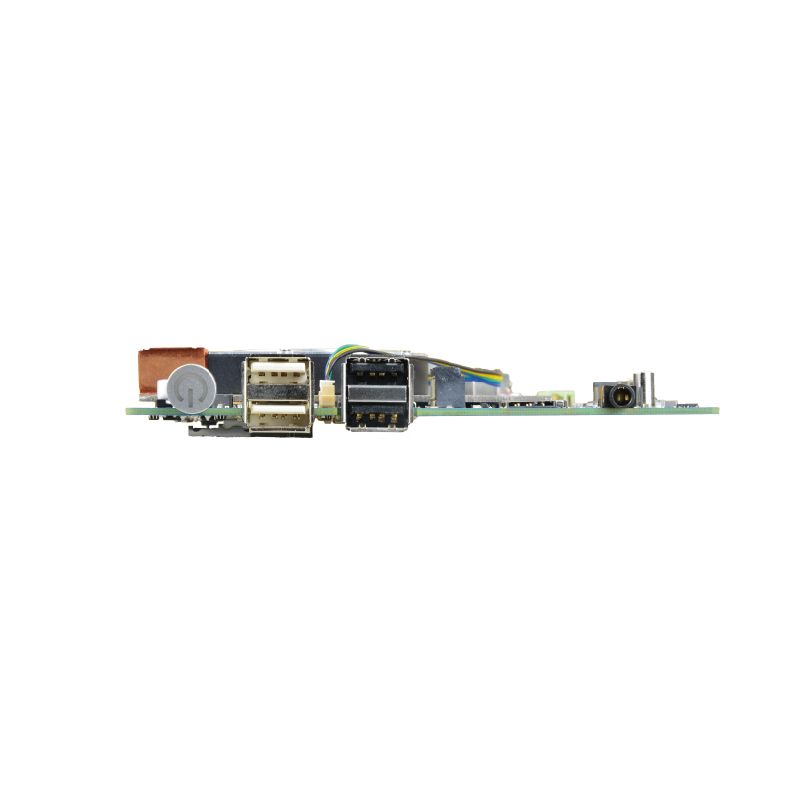

- Ultra thin design with cooling fan
EMB-IN4100D-NI1 features ultra-small size and supports Intel Gemini Lake CPU. It is designed with six USB interfaces and HDMI2.0 & DP high-definition digital display output, which support display replication and expansion. Besides, it also provides MSATA SSD storage option and WIFI, 4G expansion functions. At present, EMB-IN4100D-NI1 can be widely used in cloud terminals, intelligent education, business office, smart retail and other fields.
| Processor | Pentium Sliver J5005 1.5GHz/Turbo 2.8GHz/Quad Core/TDP 10W | |
| Pentium Sliver N5000 1.1GHz/Turbo 2.7GHz/Quad Core/TDP 6W | ||
| Celeron J4105 1.5GHz/Turbo 2.5GHz/Quad Core/TDP 10W | ||
| Celeron J4005 2.0GHz/Turbo 2.7GHz/Dual Core/TDP 10W | ||
| Celeron N4100 1.1GHz/Turbo 2.4GHz/Quad Core/TDP 6W | ||
| Celeron N4000 1.1GHz/Turbo 2.6GHz/Dual Core/TDP 6W | ||
| RAM | Type | DDR4 2400 |
| Max Capacity | Onboard 4G, supports independent SO-DIMM DDR4 memory | |
| Display | Display Core | CPU integration |
| Front Output Interfaces | HDMI2.0 （Max：3840 x 2160@60Hz） | |
| DP1.2（Max： 4096 x 2304@24Hz） | ||
| Internet | Control chipset | 1x RTL8111H 1000Mbps network, supports network wakeup and PXE guidance |
| USB | I/O | 2x USB3.0 + 4x USB2.0 |
| Storage | eMMC | Onboard 64G eMMC (128G optional) |
| Mini_PCIe | 1x MSATA SSD | |
| Audio | Control chipset | Realtel ALC662-VDO，supports 1x Audio_out+1x Mic_IN |
| Serial Port | COM | Supports 1x COM -RS232 protocol interface |
| Expansion | TF | Supports 1x standard TF card slot |
| M.2 | Supports 1x M.2 2230 slot for WIFI/BT module connection | |
| Supports 1x M.2 2242 slot for 3G/4G module connection | ||
| Software Functions | Network Wakeup | Support |
| Operating System | Windows7, 8.1, 10；Linux | |
| Power | Input Voltage | DC_IN 12V |
| Application Environment | Operating Temperature | 0°C-40°C |
| Storage Temperature | -20°C-80°C | |
| Physical Features | Size | 120 x 130mm |
| Cooling Method | Cooling Method | Direct Blowing Fan, supports temperature control to regulate speed |
