PPC-IN5100XG-101
10.1 Inches Touch Panel Based on Intel N5100 CPU
Key Features
- Intel N5100 CPU, 8GB memory, 256GB storage, Windows 11 OS
- 10.1 inches 1920*1200 LCD, 500lm, designed with front and rear camera
- I/O interfaces: USB 3.0*2, RJ45*1, HDMI*1, RS232*1, MIC, headphone, etc.
- Other functions: WWAN, WiFi, bluetooth, GPS, NFC, UHF, fingerprint recognition, scanner and multiple built-in sensors
- Robust handheld or in-vehicle panel pc at IP65 grade
- Powered by 6000mAh Li-ion battery, comes with charging dock
PPC-IN5100XG-101 is composed of a 10.1" Windows touch panel and an accompanying charging dock. The touch panel is based on Intel N5100 CPU with 8GB memory and 256GB storage, featuring 1920*1200 LCD screen and perfect video & audio functions. It supports almost all the functions you need, including LAN, WWAN, WiFi, bluetooth, GPS, NFC, UHF, fingerprint recognition, scanner and multiple built-in sensors. This robust panel also comes with wrist strap and hand strap accessories (car bracket optional), can be used as a handheld or an in-vehicle panel pc.
Charging Dock:
· Charging Interface: DC 3.5 charging slot
· Other Interfaces: USB 3.0*2, RJ45*1, RS232*1
· Dimensions: 150mm*100mm*81.8mm
| Item | Description | Details |
| OS | Windows 11 Home/Professional/Enterprise | optional |
| CPU | Intel N5100 | N4500 optional |
| Memory | 8GB + 256GB | 4GB/128GB optional |
| LCD | 10.1" 1920*1200 LCD | |
| Luminance | 500lm | Max. luminance 500lm |
| Touch Panel | 10-point touch panel | |
| Camera | Front: 5 megapixels; Rear: 13 megapixels | Front 2 megapixels/Rear 5 megapixels optional |
| Battery | 6000mAh, 7.6V Li-ion battery | Charging time 4.3h, video playing time 7.7h |
| Power Supply | DC IN 12V/3A, 4.0mm*1.7mm | |
| WWAN | 4G LTE, 3G WCDMA, GSM, Quectel EC25AUGC |
4G Fre: FDD: B1, B2, B3, B4, B5, B7, B8, B28 TDD: B40, B34 WCDMA: B1, B2, B4, B5, B8 GSM: B2, B3, B5, B8 |
| GPS | Beidou, GPS, Glonass | 3 in 1 |
| WiFi | 802.11a/b/c/g/n, wireless AP(mobile AP) 2.4G, 5G | Intel 3165 |
| Bluetooth | Bluetooth 4.2 | |
| NFC | 13.56MHz, distance 5cm or above | |
| Speaker | 1.5W | |
| Sensor |
1. Light sensor, distance sensor 2. Acceleration sensor, gravity sensor |
|
| Dimension | 275mm*178mm*18mm | |
| Multimedia | Photo format | BMP, JPG, GIF, PNG |
| Video format | MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG(Max. 1080P) | |
| Audio format | MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS(need license) | |
| Languages | Multi-language | |
| I/O Interfaces |
1. USB 3.0*2 2. RJ45*1 3. Bottom pogopin*1, USB and serial 4. Back pogopin*1 5. DC*1, 3.5*1.35 6. MIC + headphone 7. HDMI 8. RS232*1 |
|
| Expansion Headers |

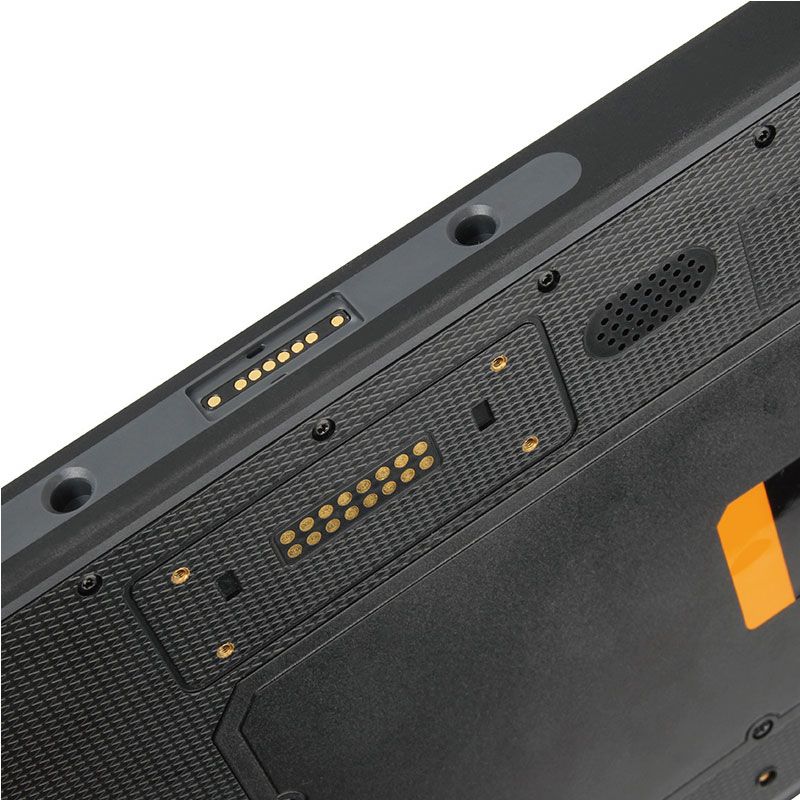

1. 16pin back of cover, including USB*1, RS232*1, UART*1, 3.3V, 5V 2. 8pin in bottom, USB*1, RS232*1, UART*1, 5V |
|
| Enclosure | ABS/PC/TPU/aluminum | |
| Keys | V+ -, Power, P, F, H | |
| Scanner | Honeywell N3680, two-dimensional | optional |
| UHF Module | 900MHz | optional |
| Fingerprint Module | Support | optional |
| Front NFC | Under the screen, the distance is 3cm, Mifare One is optional | optional |
| GPS | 0.25m-1m high-precision GPS, supports GPS, Beidou, Glonass | optional |
| Packing Accessories | 1. Charger 2. Wrist strap 3. Hand strap | |
| Optional Accessories | 1. Data cable 2. Car bracket and charger 3. Charging dock | |
| Protection |
1. IP65 2. Height of fall 1.2m |
|
| Certificates | 1. 810G 2. CE, FCC | |
| Temperature |
1. Storage: -25°C to 80°C 2. Operating: -20°C to 60°C |
Charging Time:
| Charging | Battery | Panel(power off) | Battery + Panel(Win) |
| Charging Time | 4h 56min | 3h 0min |
Battery 5h Panel 8h 30min |
| Voltage | 5.4V | 5.4V | 5.4V |
| Initial Current | 2.4A | 1.86A | 3.1A |
