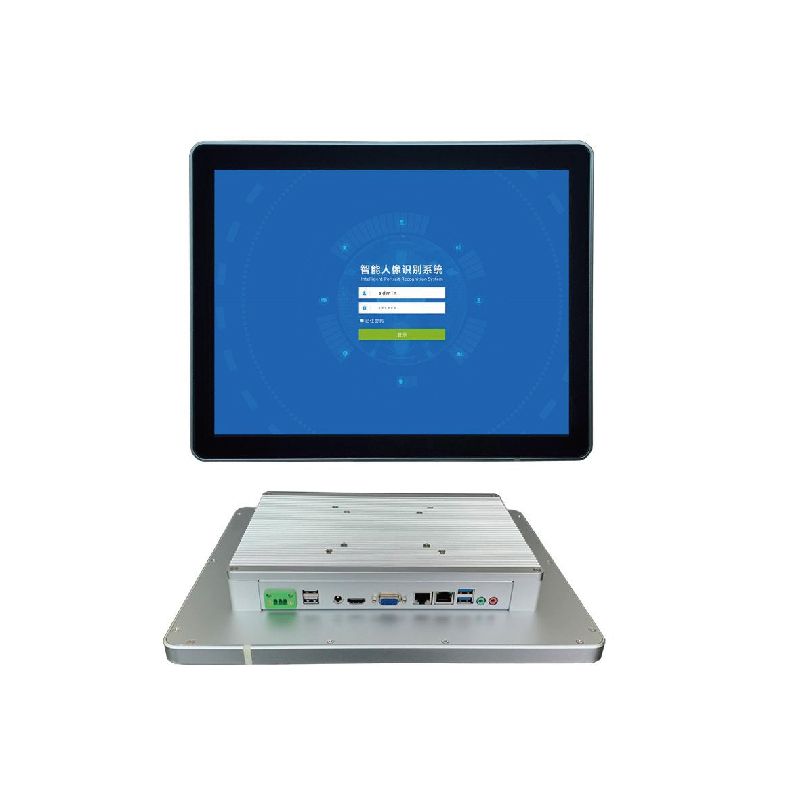

PPC-I7200UHN-152
15" Capacitive Touch Panel based on Intel Core i5-7200U CPU
Key Features
| System Specification | |||
| Product Type | Capacitive AIO Touch Panel | Size for Installation | 343.1 x 271.65mm |
| Size | 15" | Size of the Largest Face Plate | 347.1 x 275.65mm |
| CPU (optional) | Intel Core i5-7200U, 2.5GHz CPU Clock Speed, 3.1GHz Turbo | Material | Magnesium Aluminum Alloy |
| Graphics | Intel HD Graphics | TP | 15" 10-point Capacity Touch Panel |
| Memory (optional) | 8GB x 2 DDR3 | Resolution | 1024 x 768(4：3) |
| Storage (optional) | 128GB SSD | Power | DC 12V 5A |
| Accessories | Power supply/Buckle/Fixing Strip | LAN/WIFI | Onboard Realtek Dual Gigabit LAN (Single LAN and WIFI optional) |
| Features | Aluminum Case, embedded in-screen camera (optional) | Weight | 4.0KG (subject to the actual sample) |
| Installation | Built-in, wall-mounted, desktop-installed, embedded | Storage Temp. | -20-70℃ |
| OS | Windows 7/8/10, Linux | Operating Temp. | -10℃～55℃ |
| I/O Interfaces | |||
| Display | 1 x VGA, 1 x HDMI | Audio | 1 x Output Interface/1 x Input Interface |
| Network | 2 x LAN | USB | 2 x USB2.0 , 2 x USB3.0 |
| Power | 12V(DC) 12V(Phoenix) | RS485 | Expandable (according to the proportion of space) |
| IEEE1284 | Expandable | Others | Expandable (according to the proportion of space) |
| Serial Interface | 3 x RS232, 1 x RS485 | Others | Expandable (according to the proportion of space) |
| Order Information | |||
| CPU(Intel) | Memory(DDR3) | Hard Disk Drive(SSD/HHD) | WIFI/3G, 4G |
| J1900(default), supports upgrade to i3, i5, i7 | 4GB(default)/8GB | 64GB(default)/128GB/256GB | Optional |
